Relay

Relay

IMACC/G2R1-110VAC

Relay 1CO 110VAC (SPDT)

IMACC/G2RL1-12DC

Relay 1CO 12VDC (SPDT)

Pluggable Relay.
Easy to replace maintenance purpose.
Switching current capacity 10A@230VAC ;10A@30VDC

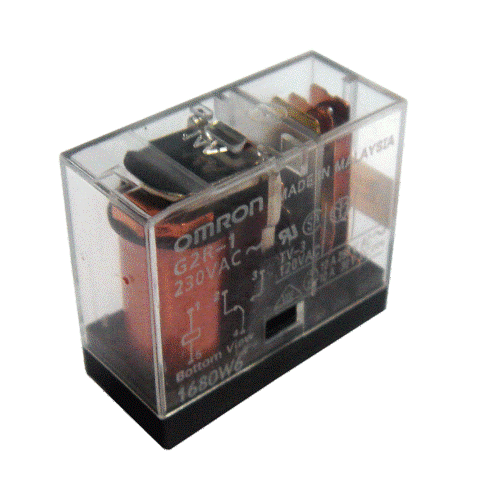

IMACC/G2R1-230VAC

Relay 1CO 230VAC (SPDT)

Pluggable Relay.
Easy to replace maintenance purpose.
Switching current capacity 10A@230VAC ;10A@30VDC

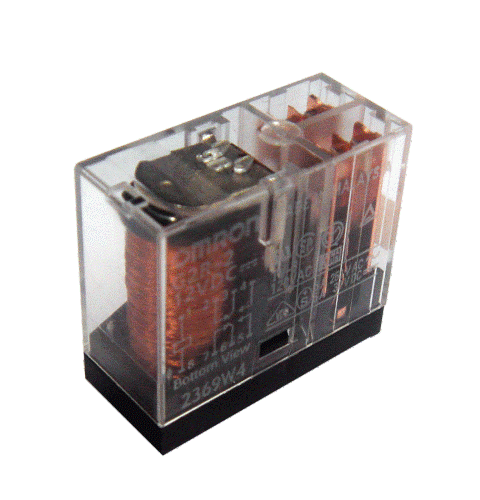

IMACC/G2R2-110VAC

Relay 2CO 110VAC (DPDT)

Pluggable Relay.
Easy to replace maintenance purpose.
Switching current capacity 10A@230VAC ;10A@30VDC

IMACC/G2R2-230VAC

Relay 2CO 230VAC (DPDT)

Pluggable Relay.
Easy to replace maintenance purpose.
Switching current capacity 10A@230VAC ;10A@30VDC

IMACC/MR1S/110A

1CO 110VAC RELAY FOR MODULAR RELAY MODULE.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 8 Amp.

IMACC/MR1S/230A

1CO 230VAC RELAY FOR MODULAR RELAY MODULE.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 8 Amp.

IMACC/MR1S/24A

1CO 24VAC RELAY FOR MODULAR RELAY MODULE.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 8 Amp.

IMACC/MR2S/110A

2CO 110VAC RELAY FOR MODULAR RELAY MODULE.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 8 Amp.

IMACC/MR2S/230A

2CO 230VAC RELAY FOR MODULAR RELAY MODULE.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 8 Amp.

IMACC/MR2S/24

2CO 24VDC RELAY FOR MODULAR RELAY MODULE.

-Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 8 Amp.

IMACC/MR2S/24A

2CO 24VAC RELAY FOR MODULAR RELAY MODULE.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 8 Amp.

IMACC/MR4S/110A

4CO 110VAC Relay for Modular Relay Module.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 5 Amp.

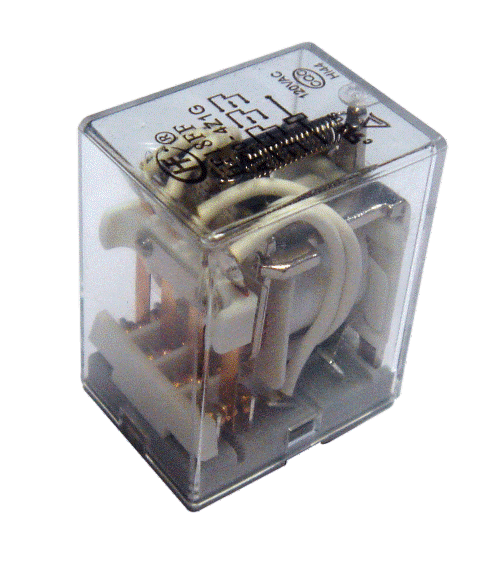

IMACC/MR4S/230A

4CO 230VAC Relay for Modular Relay Module.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 5 Amp.

IMACC/MR4S/24

4CO 24VDC Relay for Modular Relay Module.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 5 Amp.

IMACC/MR4S/24A

4CO 24VAC Relay for Modular Relay Module.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 5 Amp. at 250VAC

IMACC/MY4-110AC

4CO 24VDC Relay for Modular Relay Module.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 5 Amp.

IMACC/MY4-230AC

Relay 4CO 230VAC (4 POLES-DOUBLE THROW)

Pluggable Relay.
Easy to replace maintenance purpose.
Switching current capacity 5A@230VAC ;5A@30VDC

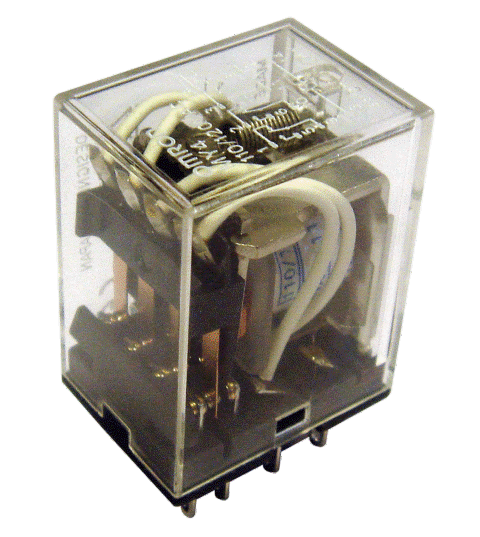

IMACC/MY4-24DC

Relay 4CO 24VDC (4 POLES-DOUBLE THROW)

Pluggable Relay
Easy to replace maintenance purpose.
Switching current capacity 5A@230VAC ;5A@30VDC

IMACC/SR1S/05

SLIM RELAY 1CO 5VDC

Pluggable Slim RELAY.
Easy to replace maintenance purpose.
Switching current capacity up to 6 Amp.

IMACC/SR1S/110A

SLIM RELAY 1CO 110VAC

Pluggable Slim RELAY.
Easy to replace maintenance purpose
Switching current capacity up to 6 Amp.

IMACC/SR1S/12

SLIM RELAY 1CO 12VDC

Pluggable Slim RELAY.
Easy to replace maintenance purpose.
Switching current capacity up to 6 Amp.

IMACC/SR1S/230A

SLIM RELAY 1CO 230VAC

Pluggable Slim RELAY.
Easy to replace maintenance purpose.
Switching current capacity up to 6 Amp.

IMACC/SR1S/24

SLIM RELAY 1CO 24VDC

Pluggable Slim RELAY.
Easy to replace maintenance purpose.
Switching current capacity up to 6 Amp.

IMACC/SR1S/48

SLIM RELAY 1CO 48VDC

Pluggable Slim RELAY.
Easy to replace maintenance purpose.
Switching current capacity up to 6 Amp.

IMACC/SR1S/60

SLIM RELAY 1CO 60VDC

Pluggable Slim RELAY.
Easy to replace maintenance purpose.
Switching current capacity up to 6 Amp.

IMACC/1CO/12DC

Relay 1CO 12VDC (SPDT)

Low profile (height 16.5 mm)
Plastic sealed relay
Switching current capacity 10A@250VAC, 10A@30VDC
RoHS compliant
UL, CSA, VDE recognized

IMACC/2CO/24DC

Relay 2CO 24VDC (DPDT)

Low profile (height 16.5 mm)
Plastic sealed relay
Switching current capacity 5A@250VAC, 5A@30VDC
RoHS compliant
UL, CSA, VDE recognized

IMACC/2CO/12DC

Relay 2CO 12VDC (DPDT)

Low profile (height 16.5 mm)
Plastic sealed relay
Switching current capacity 5A@250VAC, 5A@30VDC
RoHS compliant
UL, CSA, VDE recognized

IMACC/1CO/48DC

Relay 1CO 48VDC (SPDT)

Low profile (height 16.5 mm)
Plastic sealed relay
Switching current capacity 10A@250VAC, 10A@30VDC
RoHS compliant
UL, CSA, VDE recognized

IMACC/2CO/48DC

Relay 2CO 48VDC (DPDT)

Low profile (height 16.5 mm)
Plastic sealed relay
Switching current capacity 5A@250VAC, 5A@30VDC
RoHS compliant
UL, CSA, VDE recognized

IMACC/1CO/230A

Relay 1CO 230VAC (SPDT)

Low profile (height 15.7 mm)
Plastic sealed relay
Switching current capacity 12A@250VAC
RoHS compliant
UL, VDE recognized

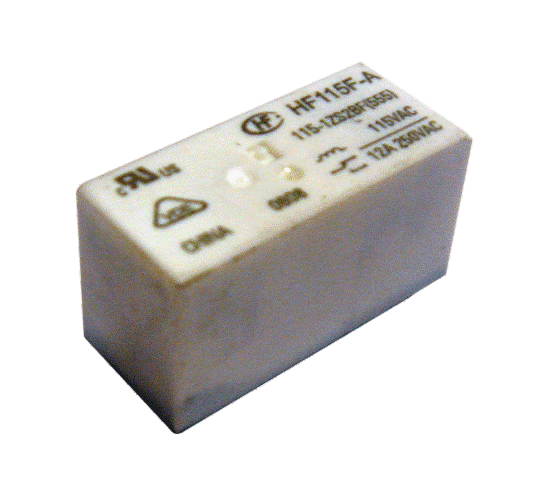

IMACC/1CO/110A

Relay 1CO 110VAC (SPDT)

Low profile (height 15.7 mm)
Plastic sealed relay
Switching current capacity 12A@250VAC
RoHS compliant
UL, VDE recognized

IMACC/2CO/230A

Relay 2CO 230VAC (DPDT)

Low profile (height 15.7 mm)
Plastic sealed relay
Switching current capacity 8A@250VAC
RoHS compliant
UL, VDE recognized

IMACC/2CO/110A

Relay 2CO 110VAC (DPDT)

Low profile (height 15.7 mm)
Plastic sealed relay
Switching current capacity 8A@250VAC
RoHS compliant
UL, VDE recognized

IMACC/4CO/24DC

Relay 4CO 24VDC (4PDT)

Switching current capacity 5A@250VAC/30VDC
RoHS compliant
UL Recognized

IMACC/4CO/110AC

Relay 4CO 110VAC (4 PDT)

Switching current capacity 5A@250VAC/30VDC
RoHS compliant
UL Recognized

IMACC/4CO/230AC

Relay 4CO 230VAC (4 PDT)

Switching current capacity 5A@250VAC/30VDC
RoHS compliant
UL Recognized

IMACC/G2RL1/24DC

Relay 1CO 24VDC (SPDT)

Pluggable Relay.
Easy to replace maintenance purpose.
Switching current capacity 10A@230VAC ;10A@30VDC

SRL1-24D

Relay 1CO 24VDC (SPDT)

Slim & Compact 15x5x28 (LXWXH) mm
Plastic sealed relay
Switching current capacity 6A@250VAC, 6A@30VDC
RoHS compliant
UL, VDE recognized

SRL1-60D

Relay 1CO 60VDC (SPDT)

Slim & Compact 15x5x28 (LXWXH) mm
Plastic sealed relay
Switching current capacity 6A@250VAC, 6A@30VDC
RoHS compliant
UL, VDE recognized

IMACC/RT4240/24DC

Relay 2CO 24VDC (DPDT)

Pluggable Relay.
Easy to replace maintenance purpose.
Switching current capacity 6A@230VAC ;6A@30VDC

IMACC/MR2S/110

2CO 110VDC RELAY FOR MODULAR RELAY MODULE.

IMACC/MR2S/12

2CO 12VDC RELAY FOR MODULAR RELAY MODULE.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 8 Amp.

IMACC/MR2S/48

2CO 48VDC RELAY FOR MODULAR RELAY MODULE.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 8 Amp.

IMACC/G2RL2/48DC

2CO 12VDC RELAY FOR MODULAR RELAY MODULE.

Pluggable Modular Relay.
Easy to replace maintenance purpose.
Switching current capacity up to 8 Amp.

IMACC/G2RL2/12DC

Relay 1CO 12VDC (SPDT)

Pluggable Relay.
Easy to replace maintenance purpose.
Switching current capacity 10A@230VAC ;10A@30VDC
