24VDC

24VDC

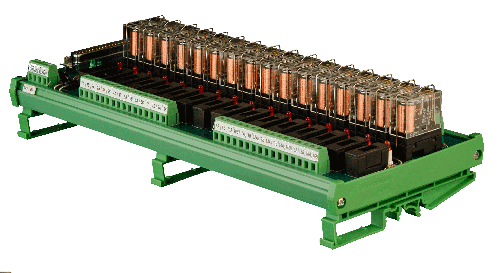

IMRE/DI16/24/DM37

16 CH Digital Input(DI) Relay Interface Module

These modules act as input module for PLCs or other digital controllers.
The digital input (DI) module provide isolation between two wire field sensor and the input of controllers like PLC.In addition the connection between the digital input module and PLC is through a convenient DSUB connector.
This module has an added safety feature of Glass fuse.The power terminal on the module helps to provide power signal to either the load or the sensor.
In addition to the DSUB connector,standard PCB terminal blocks are also provided for connecting the input signals

IMREDI16/24/DM37OM

16 CH Digital Input(DI) Relay Interface Module

These modules act as input module for PLCs or other digital controllers.
The digital input (DI) module provide isolation between two wire field sensor and the input of controllers like PLC.In addition the connection between the digital input module and PLC is through a convenient DSUB connector.
This module has an added safety feature of Glass fuse.The power terminal on the module helps to provide power signal to either the load or the sensor.
In addition to the DSUB connector,standard PCB terminal blocks are also provided for connecting the input signals

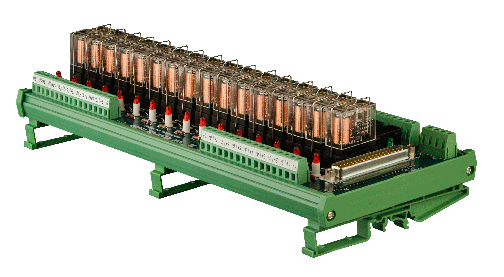

IMRE/DO16/24/DM37

16 CH Digital Output(DO) Relay Interface Module

These modules act as output modules for PLCs or other digital controllers. The digital output (DO) module has the added convenience of providing trigger/ switching signal to the relays from the PLC by use of a DSUB Connector.
DO module has an added safety feature of glass fuse. The power terminals on the modules help to provide power signal to either the load or the sensors .
In addition to the DSUB Connector, standard PCB Terminal Blocks are also provided for connecting the output signals.

IMRE/DO16/24/DM37

16 CH Digital Output(DO) Relay Interface Module

These modules act as output modules for PLCs or other digital controllers. The digital output (DO) module has the added convenience of providing trigger/ switching signal to the relays from the PLC by use of a DSUB Connector.
DO module has an added safety feature of glass fuse. The power terminals on the modules help to provide power signal to either the load or the sensors .
In addition to the DSUB Connector, standard PCB Terminal Blocks are also provided for connecting the output signals.
