110VAC

110VAC

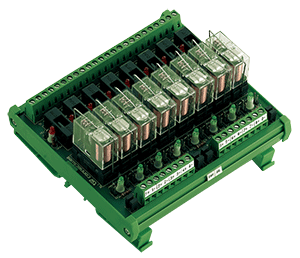

IMRE1SSFIXX/110A/XX

Relay Module 1CO 110VAC (SPDT) With Output Fuse Fail Indication

Replaceable fuses with simple to operate Horizontal fuse hold-Fast Blow & Slow Blow fuses available as standard
Fuse ratings from 0.1 A to 6.3 A available.
Variety of Operating Voltages.
Switching Current upto 10 A at 230 VAC (or 30 VDC).
Low Coil Drive Current(4.7 mA to 100 mA)
Easy to replace pluggable relays
Possibility of Bussing (Jumpering) relays in common negative or common positive configurations.
Relay Coil Protection by means of a Freewheeling Diode.
Green LED indication to denote ralay actuation.
Red LED indication to denote fuse fail indication.
Fuse Fail Indication Voltage:24 VAC/DC, 110 VAC/DC,230 VAC/DC
Mounting Options available:DIN Rail mounting & Panel mounting.

IMRE1SSFIXX/110A/XX

Relay Module 1CO 110VAC (SPDT) With Output Fuse Fail Indication

Replaceable fuses with simple to operate Horizontal fuse hold-Fast Blow & Slow Blow fuses available as standard
Fuse ratings from 0.1 A to 6.3 A available.
Variety of Operating Voltages.
Switching Current upto 12 A at 250 VAC
Easy to replace pluggable relays
Possibility of Bussing (Jumpering) relays in common negative or common positive configurations.
Relay Coil Protection by means of a Freewheeling Diode.
Green LED indication to denote relay actuation.
Red LED indication to denote fuse fail indication.
Mounting Options available:DIN Rail mounting & Panel mounting.

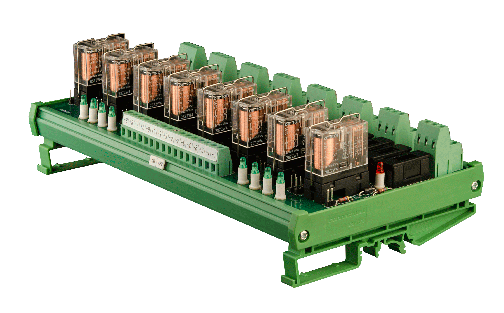

IMRE2SSFIXX/110A/XX

Relay Module 2CO 110VAC (DPDT) With Output Fuse Fail Indication

Replaceable fuses with simple to operate Horizontal fuse holders
Fast Blow & Slow Blow fuses available as standard
Fuse ratings from 0.1 A to 6.3 A available.
Variety of Operating Voltages.
Switching Current upto 5 A at 230 VAC (or 30 VDC)
Low Coil Drive Current(4.7 mA to 100 mA)
Easy to replace pluggable relays-possibility of Bussing (Jumpering) relays in common negative or common positive configurations.
Relay Coil Protection by means of a Freewheeling Diode.
Green LED indication to denote fuse fail indication.
Fuse Fail Indication Voltage:24 VAC/DC, 110 VAC/DC,230 VAC/DC
Mounting Options available:DIN Rail mounting & Panel mounting.

IMRE2SSFIXX/110A/XX

Relay Module 2CO 110VAC (DPDT) With Output Fuse Fail Indication

Replaceable fuses with simple to operate Horizontal fuse holders
Fast Blow & Slow Blow fuses available as standard
Fuse ratings from 0.1 A to 6.3 A available.
Variety of Operating Voltages.
Switching Current upto 8 A at 250 VAC
Easy to replace pluggable relays-possibility of Bussing (Jumpering) relays in common negative or common positive configurations.
Relay Coil Protection by means of a Freewheeling Diode.
Green LED indication to denote fuse fail indication.
Mounting Options available:DIN Rail mounting & Panel mounting.
