IMRE1SSFIXX/24/XX

Relay Module 1CO 24VDC (SPDT) With Output Fuse Fail Indication
  • Replaceable fuses with simple to operate Horizontal fuse holders -Fast Blow & Slow Blow fuses available as standard
  • Fuse ratings from 0.1 A to 6.3 A available.
  • Variety of Operating Voltages.
  • Switching Current upto 10 A at 230 VAC (or 30 VDC).
  • Low Coil Drive Current(4.7 mA to 100 mA)
  • Easy to replace pluggable relays
  • Possibility of Bussing (Jumpering) relays in common negative or common positive configurations.
  • Relay Coil Protection by means of a Freewheeling Diode.
  • Green LED indication to denote Relay Actuation.
  • Red LED indication to denote fuse fail indication.
  • Fuse Fail Indication Voltage:24 VAC/DC, 110 VAC/DC,230 VAC/DC
  • Mounting Options available:DIN Rail mounting & Panel mounting.
Data Sheet
Enquire Now

IMRE1SSFIXX/24/XX

Relay Module 1CO 24VDC (SPDT) With Output Fuse Fail Indication
  • Replaceable fuses with simple to operate Horizontal fuse holders -Fast Blow & Slow Blow fuses available as standard
  • Fuse ratings from 0.1 A to 6.3 A available.
  • Variety of Operating Voltages.
  • Switching Current upto 10 A at 250 VAC (or 30 VDC).
  • Easy to replace pluggable relays
  • Possibility of Bussing (Jumpering) relays in common negative or common positive configurations.
  • Relay Coil Protection by means of a Freewheeling Diode.
  • Green LED indication to denote Relay Actuation.
  • Red LED indication to denote fuse fail indication.
  • Mounting Options available:DIN Rail mounting & Panel mounting.
Data Sheet
Enquire Now

IMRE2SSFIXX/24/XX

Relay Module 2CO 24VDC (DPDT) With Output Fuse Fail Indication
  • Replaceable fuses with simple to operate Horizontal fuse holders
  • Fast Blow & Slow Blow fuses available as standard
  • Fuse ratings from 0.1 A to 6.3 A available.
  • Variety of Operating Voltages.
  • Switching Current upto 5 A at 230 VAC (or 30 VDC)
  • Low Coil Drive Current(4.7 mA to 100 mA)
  • Easy to replace pluggable relays-possibility of Bussing (Jumpering) relays in common negative or common positive configurations.
  • Relay Coil Protection by means of a Freewheeling Diode.
  • Green LED indication to denote fuse fail indication.
  • Fuse Fail Indication Voltage:24 VAC/DC, 110 VAC/DC,230 VAC/DC
  • Mounting Options available:DIN Rail mounting & Panel mounting.
Data Sheet
Enquire Now

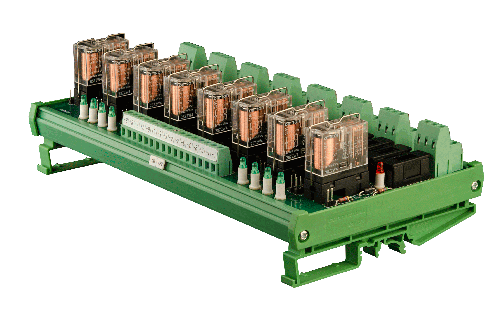

IMRE2SSFIXX/24/XX

Relay Module 2CO 24VDC (DPDT) With Output Fuse Fail Indication
  • Replaceable fuses with simple to operate Horizontal fuse holders
  • Fast Blow & Slow Blow fuses available as standard
  • Fuse ratings from 0.1 A to 6.3 A available.
  • Variety of Operating Voltages.
  • Switching Current upto 5 A at 250 VAC (or 30 VDC).
  • Easy to replace pluggable relays-possibility of Bussing (Jumpering) relays in common negative or common positive configurations.
  • Relay Coil Protection by means of a Freewheeling Diode.
  • Green LED indication to denote fuse fail indication.
  • Mounting Options available:DIN Rail mounting & Panel mounting.
Data Sheet
Enquire Now
