48VDC Output

48VDC Output

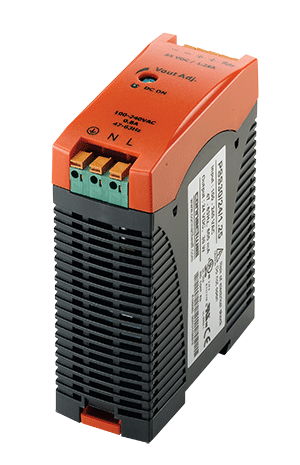

PSS30/48/0.63

0.63A,30W Single Phase Din Rail Mountable Switching Power Supplies

Full Range Input selection from 85 to 264VAC
Typical efficiency of 86%
Compact design with a width of only 40.5mm
Two years product warranty

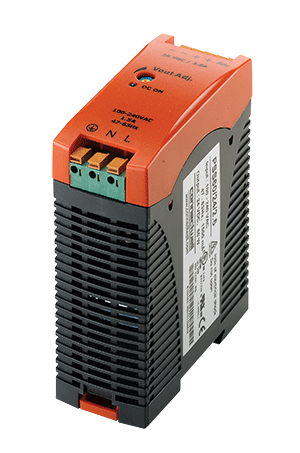

PSS60/48/1.25

1.25A,60W Single Phase Din Rail Mountable Switching Power Supplies

Full Range Input selection from 85 to 264VAC
Typical efficiency of 89%
Compact design with a width of only 40.5mm
Two years product warranty

PSS100/48/2.1

3A,15W Single Phase Din Rail Mountable Switching Power Supplies

Full Range Input selection from 90 to 264VAC
Typical efficiency of 75%
Compact design with a width of only 22.5mm
Two years product warranty

PSS120/48/2.5

2.5A,120W Single Phase Din Rail Mountable Switching Power Supplies

Full Range Input selection from 115 /230 VAC Auto select
Typical efficiency of 87%
Compact design with a width of only 64mm
Parallel function available (Switch)
Two years product warranty

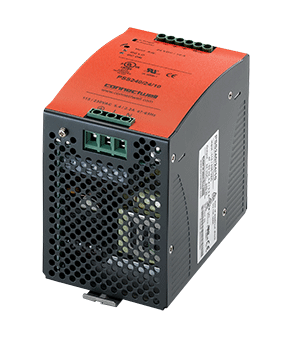

PSS240/48/5

5A,240W Single Phase Din Rail Mountable Switching Power Supplies

Full Range Input selection from 90 to 264 VAC Auto select
Typical efficiency of 90%
Compact design with a width of only 83.5mm
Parallel function available (Switch)
Two years product warranty

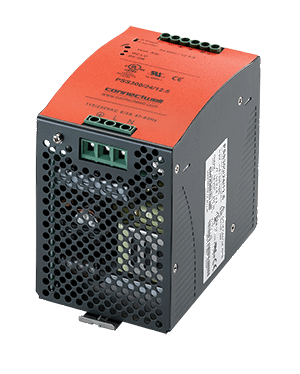

PSS300/48/6.25

6.25A,300W Single Phase Din Rail Mountable Switching Power Supplies

Full Range Input selection from 90 -264 VAC Auto select
Typical efficiency of 90%
Compact design with a width of only 83.5mm
Parallel function available (Switch)
Two years product warranty

PSS480/48/10

10A,480W Single Phase Din Rail Mountable Switching Power Supplies

Full Range Input selection from 90 to 264 VAC Auto select
Typical efficiency of 90%
Compact design with a width of only 175.50mm
Parallel function available (Switch)
Two years product warranty
