Adjacent Shorting Link

Adjacent Shorting Link

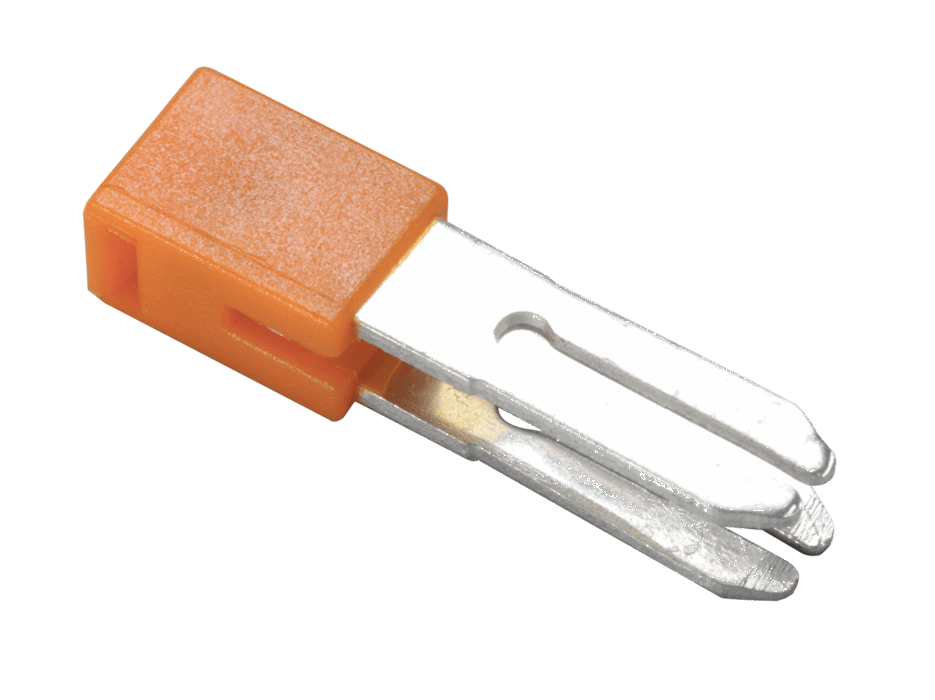

CA801/1

Insulated Push-In Type Shorting Link

Adjacent type links are available for cross connection in Spring Clamp Terminal Blocks. The links need to be inserted into the rectangular slots provided in the current bar of the Terminal Block.

CA801/A2

Insulated Push-In Type Shorting Link

Insulated Push-In type links are available for cross connection in Spring Clamp Terminal Blocks. The links need to be inserted into the rectangular slots provided in the current bar of the Terminal Block.

CA801/2

Insulated Push-In Type Shorting Link

Adjacent type links are available for cross connection in Spring Clamp Terminal Blocks. The links need to be inserted into the rectangular slots provided in the current bar of the Terminal Block.

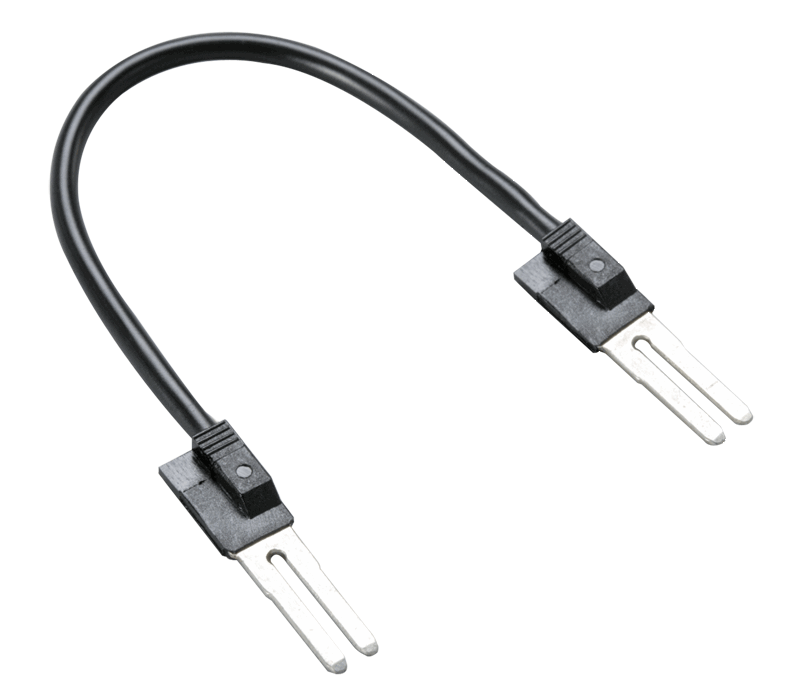

CA801/7

Insulated Push-In Type Shorting Link

Adjacent type links are available for cross connection in Spring Clamp Terminal Blocks. The links need to be inserted into the rectangular slots provided in the current bar of the Terminal Block.

CA801/4

Insulated Push-In Type Shorting Links for CSC10T Terminal Block

CA801/5

Insulated Push-In Type Shorting Links

CA801/3

Insulated Push-In Type Shorting Links

External Insulated Shorting Links : CA803/1

Insulated External Comb Type Shorting Link

External shorting links bridge potentials between terminal blocks, reducing wiring time. Adjacent or selected blocks within an assembly can be easily interconnected. Individual links may be removed for selective shorting. These are insulated and available in 2, 3, 4 and 10 pole versions. They are made of tin plated brass/copper. Comb Link must be tightened to the recommended torque specified to get a reliable connection.
