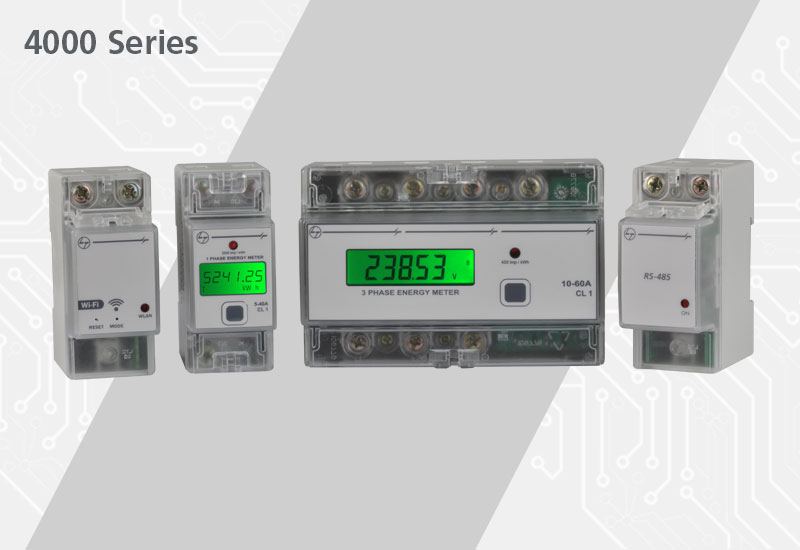

For energy monitoring of loads in distribution boards. These are primarily used for sub metering purposes.

Parameters:

1 Phase-Voltage, Current, kW, kWh, 3 Phase-Voltage, Current, kW, kWh + PF, kVA, kVAr, MD

Salient features:

  • Accuracy Class 1 as per IEC 62053-21
  • LCD display for clear display of parameter values
  • Whole current operated. 5-40A for Single Phase and 10-60A for Three Phase
  • Displays Push-to-Push consumption, Daily, Weekly, Monthly consumption
  • Push button for parameter scrolling
  • Terminal covers to avoid direct contact of the supply terminals along with sealing provision
  • Energy recording at low currents
  • Pulse output LED available
  • Reverse current indication for three phase
  • Compact size and easy mounting
  • Additional RS485 module for communication over RS485 modbus RTU protocol
